SCPL-OU
Hydraulic Plugs/Screw Plugs

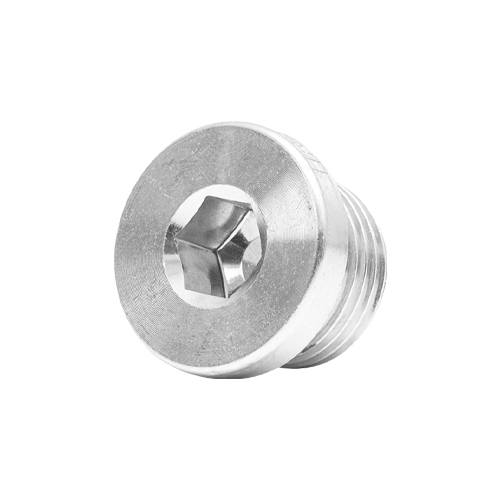

UNF MALE THREAD INTERNAL HEX PLUG(O-RING)

Material：

Carbon steel CS

Alloy steel CR

Easy cutting steel YPB

Stainless steel SS

Aluminum AL

Brass BS

Contact Us

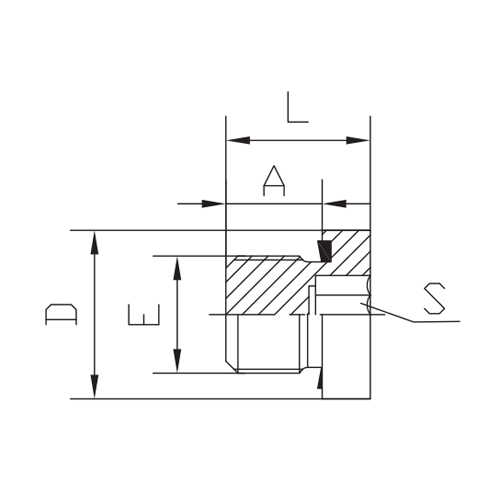

PART NO. THREAD ED DIMENSIONS WORKING PRESSURE
E CAPTIVE A L S D ROTATING TORQUE
N.M 		PN(MPA)
SCPL-OU02 5/16”x24UNF 6.07x1.63 8 10 4 10.5 9-12 31.5
SCPL-OU03 3/8”x24UNF 7.65x1.63 8 10.3 4 12.5 15-20 31.5
SCPL-OU04 7/16”x20UNF 8.92x1.83 9.1 11.5 5 14.5 20-35 31.5
SCPL-OU05 1/2”×20UNF 10.52x1.83 9.1 11.5 5 16 30-40 31.5
SCPL-OU06 9/16”x18UNF 11.89x1.98 9.7 12.2 6 17.5 35-45 31.5
SCPL-OU08 3/4”x16UNF 16.36x2.21 11.1 14.3 8 22.2 45-60 31.5
SCPL-OU10 7/8”x14UNF 19.18×2.46 12.7 16.2 10 25.4 55-75 25
SCPL-OU12 1.1/16”x12UNF 23.47x2.95 15.1 19 12 32 75-90 25
SCPL-OU16 1.5/16”x12UNF 29.74x2.95 15.1 19 17 38.1 100-160 20
SCPL-OU20 1.5/8”x12UNF 37.46x3.00 15.1 19 22 47.6 150-210 16
SCPL-OU24 1.7/8”x12UNF 43.69x3.00 15.1 19 24 54 260-350 16
SCPL-OU32 2.1/2”x12UNF 59.36x3.00 15.1 19 19 70 340-400 12.5

Trivalent chromium galvanized ZC

Zinc nickel alloy ZN

Jumeite GMT

Blackening H

Natural Oil B

NBR -30°C--120°C

FKM -20°C--200°C

HNBR -40°C--100°C

EPDM -40°C--150°C

Carbon steel: SCPL-OU08
304 stainless steel: SCPL-OU08/SS304

ISO11926-1 SAE
EATON:4ON
