SCPL-6409
Hydraulic Plugs/Screw Plugs

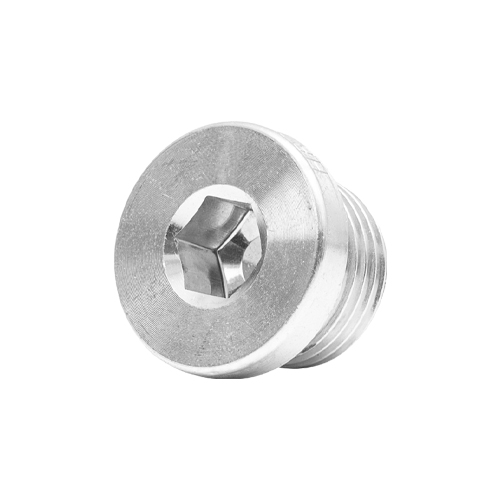

UNF MALE THREAD INTERNAL HEX PLUG(O-RING)

Material：

Carbon steel CS

Alloy steel CR

Easy cutting steel YPB

Stainless steel SS

Aluminum AL

Brass BS

Contact Us

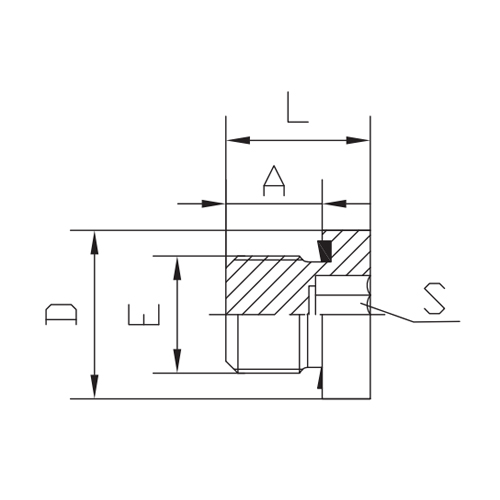

PART NO. THREAD ED DIMENSIONS WORKING PRESSURE
E CAPTIVE A L S D ROTATING TORQUE
N.M 		PN(MPA)
SCPL-6409-2 5/16”x24UNF 6.07x1.63 7.5 10.3 1/8 11.1 9-12 31.5
SCPL-6409-3 3/8”x24UNF 7.65x1.87 7.5 10.3 1/8 12.7 15-20 31.5
SCPL-6409-4 7/16”x20UNF 8.92x1.83 9.1 12 3/16 14.3 20-35 31.5
SCPL-6409-5 1/2”x20UNF 10.52x1.83 9.1 12 3/16 15.85 30-40 31.5
SCPL-6409-6 9/16”x18UNF 11.89x1.98 10 12.9 1/4 17.45 35-45 31.5
SCPL-6409-8 3/4”x16UNF 16.36x2.21 11.1 14.9 5/16 22.2 45-60 31.5
SCPL-6409-10 7/8”x14UNF 19.18x2.46 12.7 16.7 3/8 25.4 55-75 25
SCPL-6409-12 1.1/16”x12UNF 23.47x2.95 15.1 19.7 9/16 31.75 75-90 25
SCPL-6409-14 1.3/16”12UNF 26.62x2.95 15.1 19.7 9/16 34.9 75-90 20
SCPL-6409-16 1.5/16”x12UNF 29.74x2.95 15.1 19.7 5/8 38.1 100-160 20
SCPL-6409-20 1.5/8”x12UNF 37.46x3.00 15.1 19.7 3/4 47.6 150-210 16
SCPL-6409-24 1.7/8”x12UNF 43.69x3 15.1 19.7 3/4 53.95 260-350 16
SCPL-6409-32 2.1/2”x12UNF 59.36x3 15.1 19.7 3/4 69.85 340-400 12.5

Trivalent chromium galvanized ZC

Zinc nickel alloy ZN

Jumeite GMT

Blackening H

Natural Oil B

NBR -30°C--120°C

FKM -20°C--200°C

HNBR -40°C--100°C

EPDM -40°C--150°C

Carbon steel: SCPL-6409-8
304 stainless steel: SCPL-6409-8/SS304

ISO11926-1 SAE
